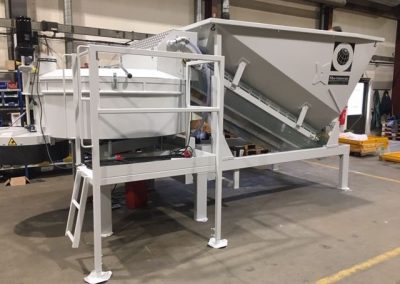

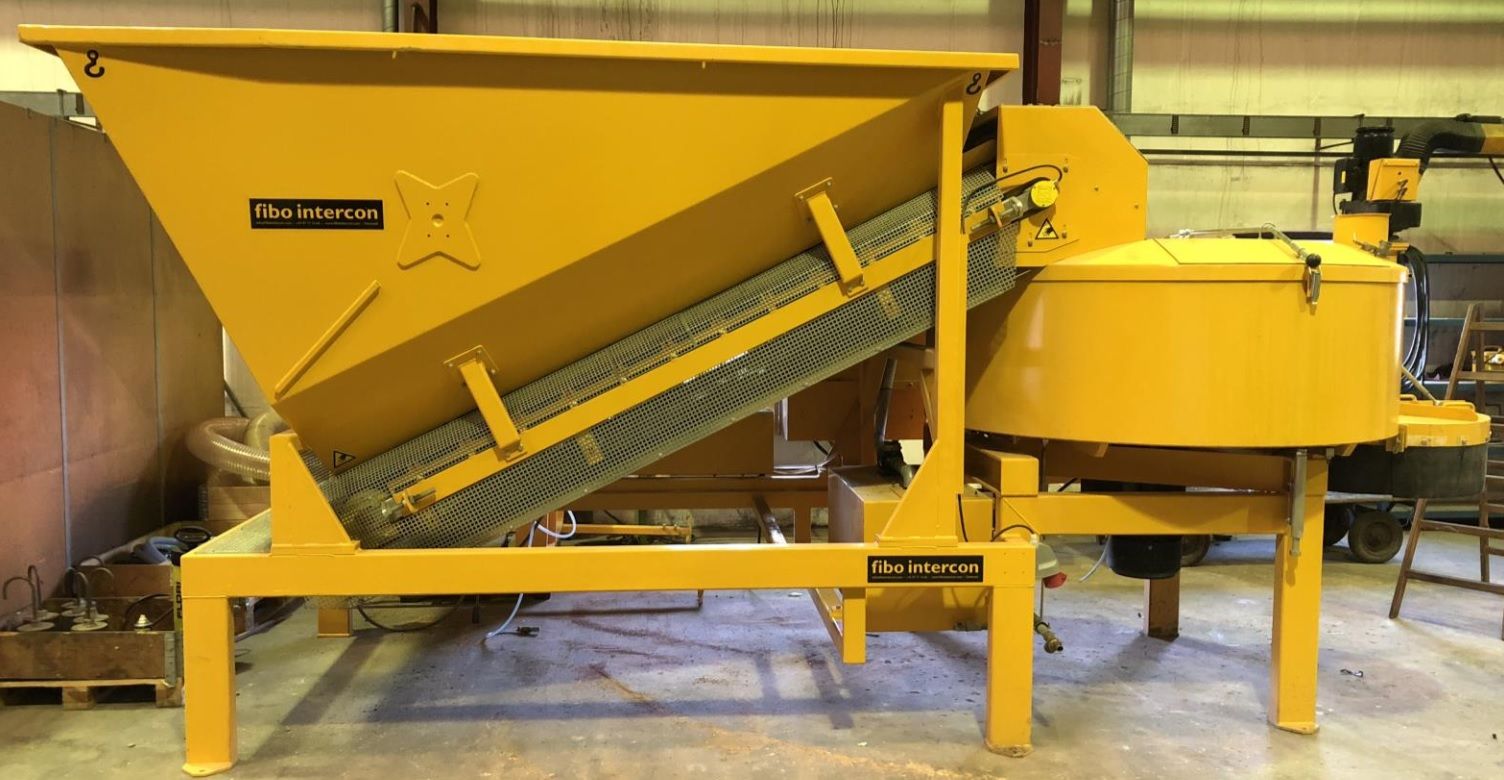

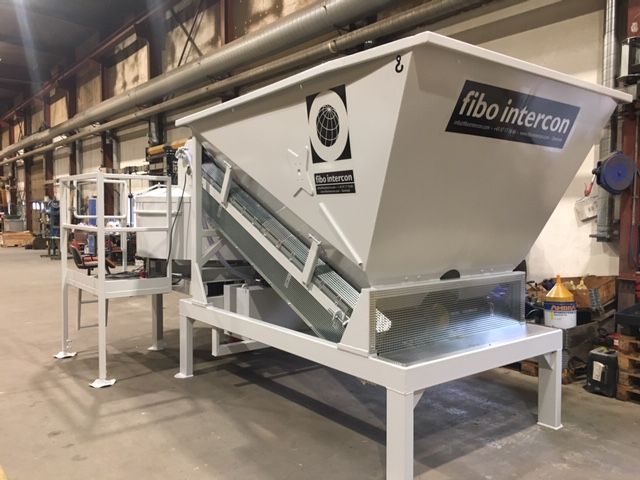

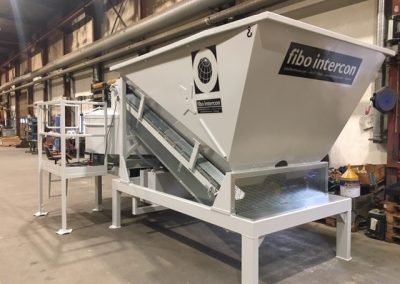

FS1200, 10-16m³/hour

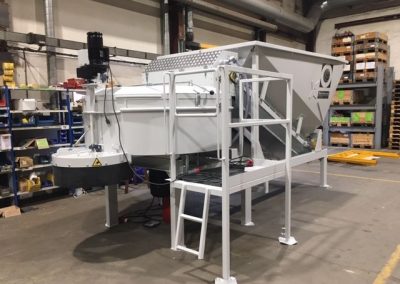

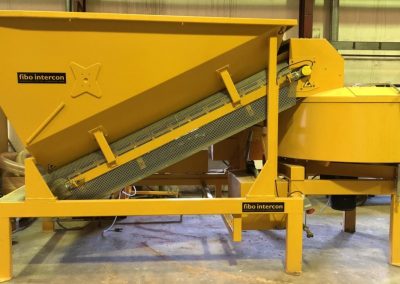

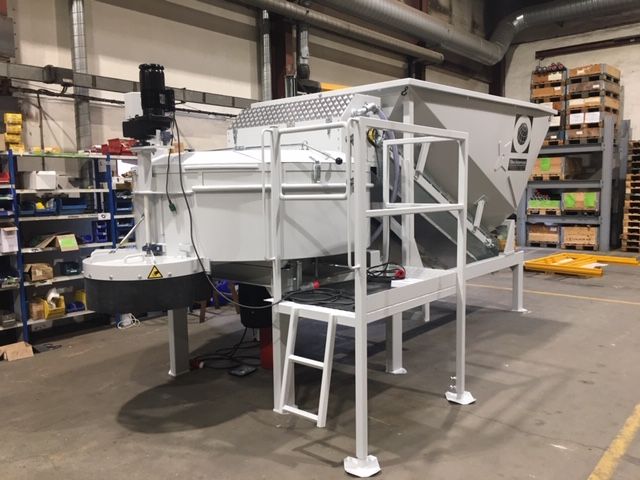

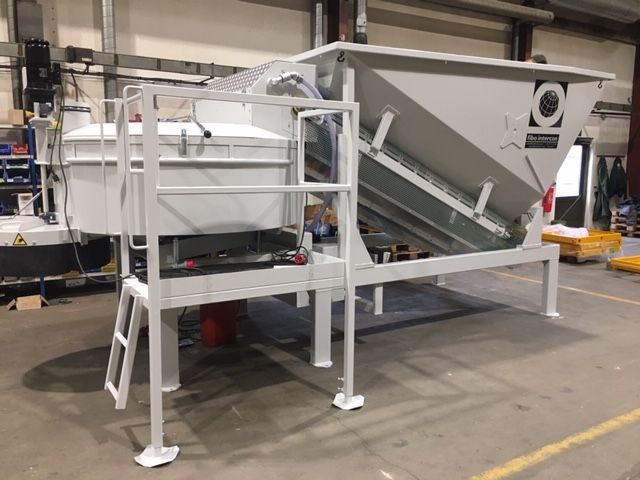

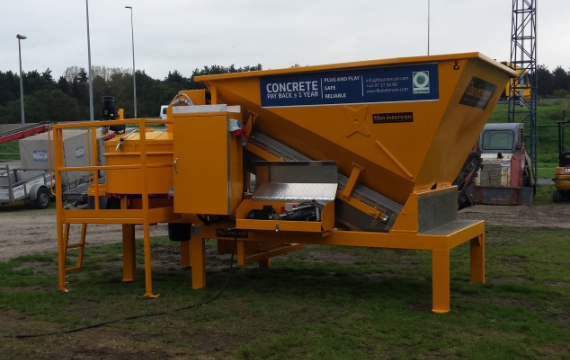

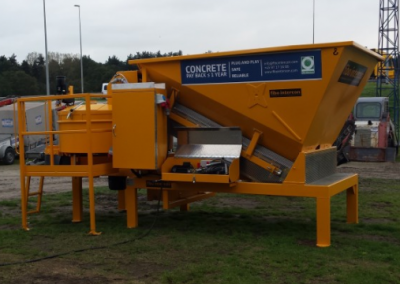

The concrete unit is mounted on a metal frame with a leg.

This device has a concrete mixer, 2 interlinked separate hoppers of inert materials, 2 independent conveyors of inert materials, water tank, weight sensors, dosing and control equipment with control computer.

Can be equipped with a high pressure washer.
The device can be transported on a truck platform.

Technical data:

• production capacity 10 - 16 m³ / hour
• mixer capacity 1200 L
• amount of concrete to be mixed 800 L
• mixer electric motor power 15 kW
• Water capacity 250 L
• filler hoppers 2 x 2.4 m³ (can be increased to 2 x 3.9 m³)
• material dosing accuracy ± 1 %
• supply voltage 3 x 400 V / 32 A
• Dimensions (W x H x D) 2300 x 2500 x 5300 mm
• mass 3500 kg

Manufacturer Fibo intercon (Denmark)
